- Crumple Zone™ Corners absorb and deflect impact
- Drop tested to protect against falls from up to 4 feet
- Durable, braided cord
- MFI approved
- O-Ring temper-proof keys
- Water resistant keyboard
- Ergonomic typing angle
- Ruggedized lightning tip, built to last
- Tuck-away cord organization system
- No charging required
- No setup required - simply plug in and use
- Drop tested to protect against falls up to 4 feet making it TechShell Basic 4-26 Certified
Product Information
Overview

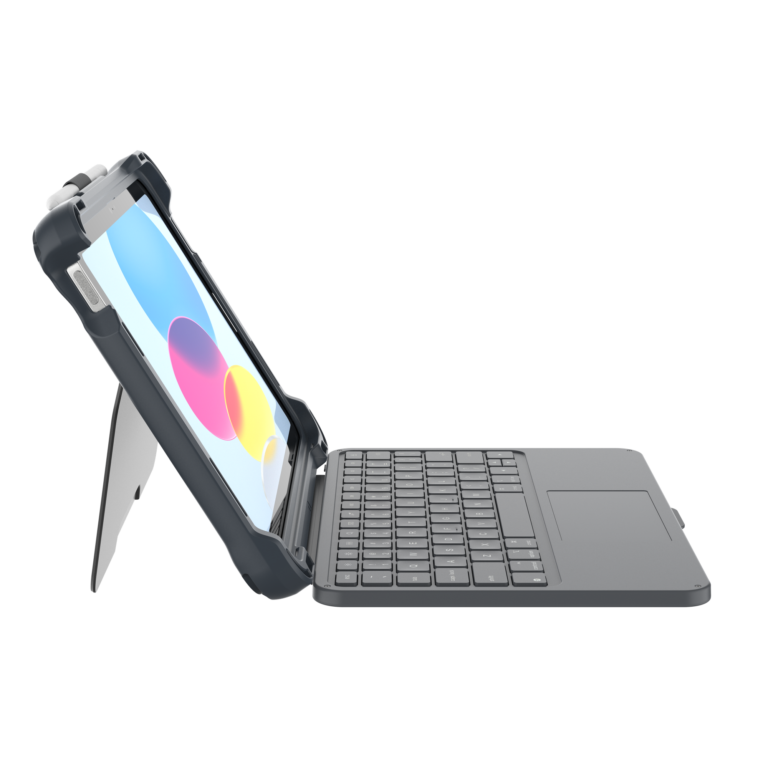

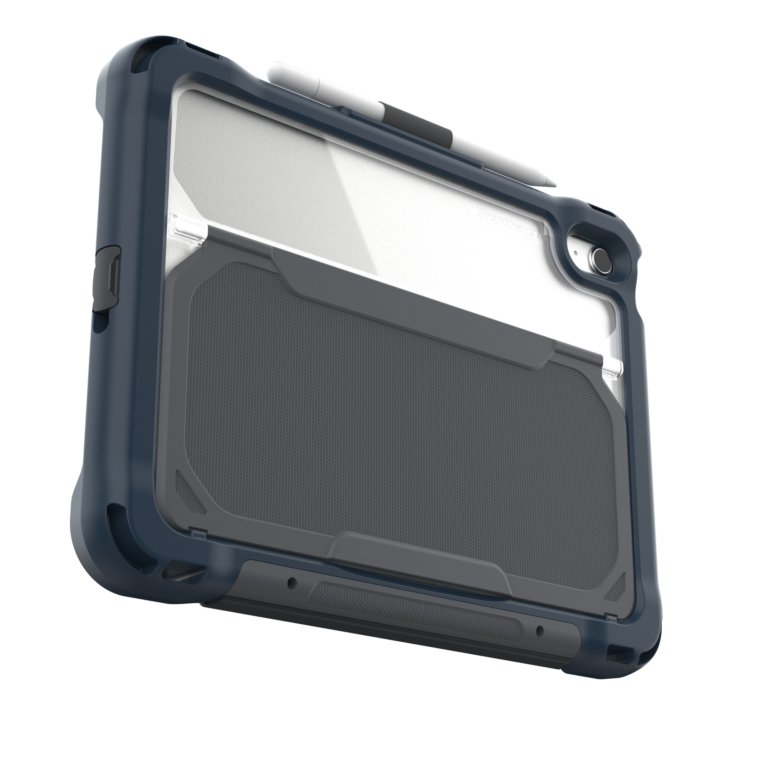

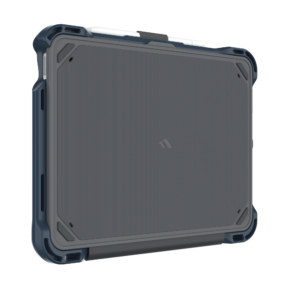

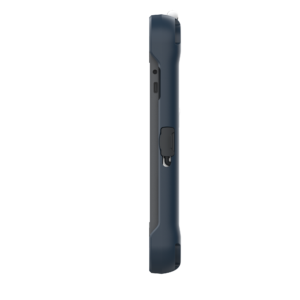

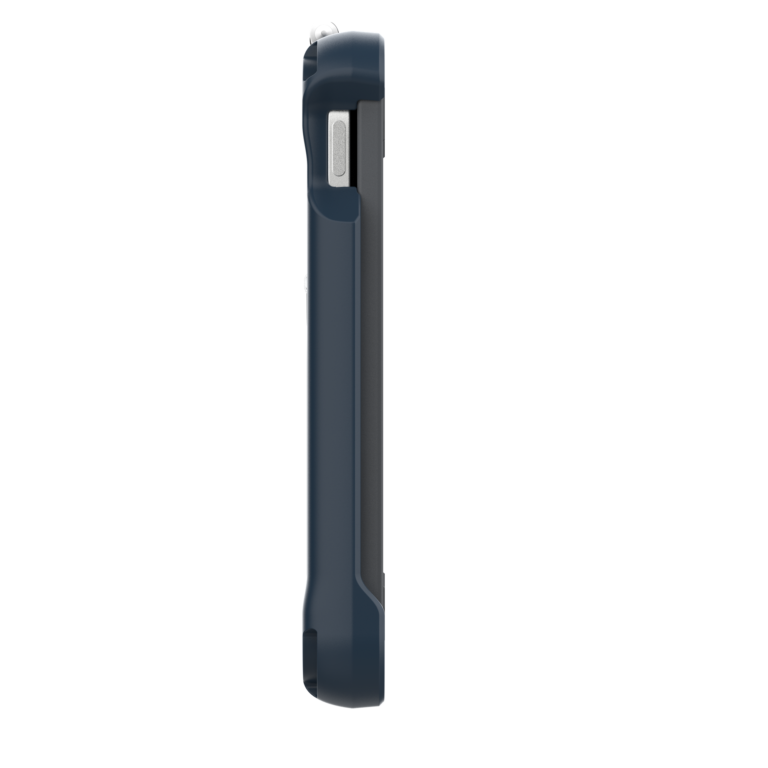

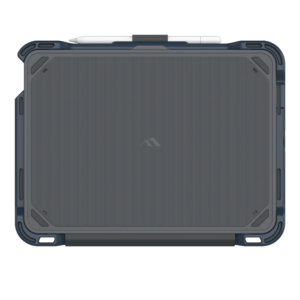

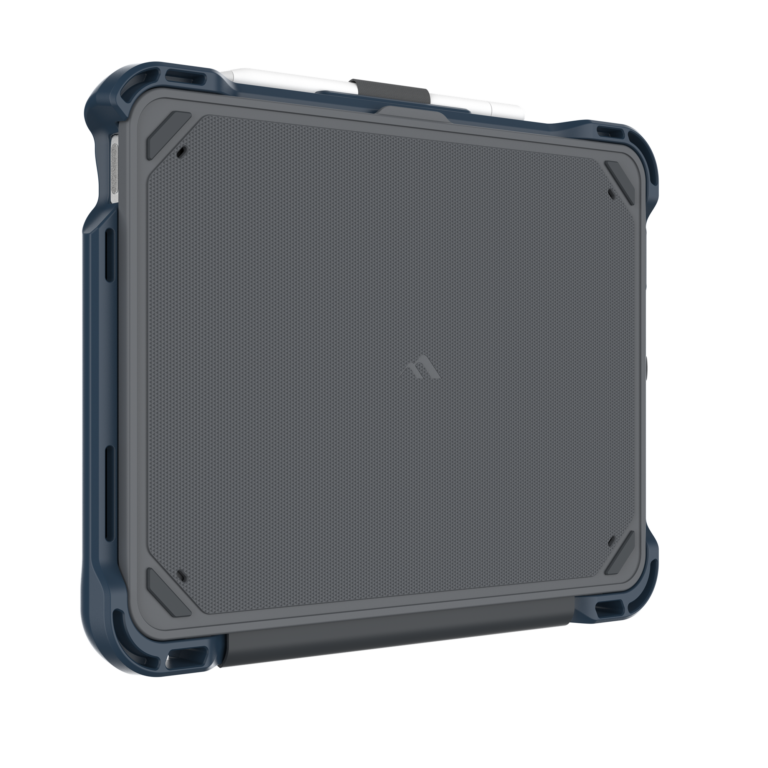

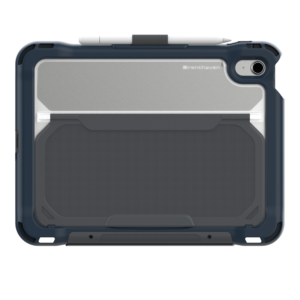

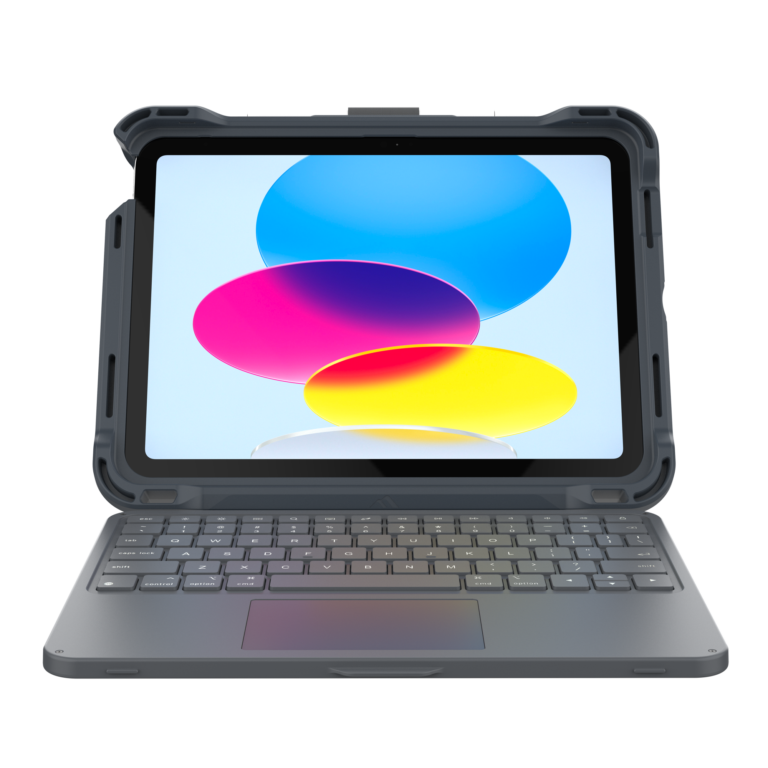

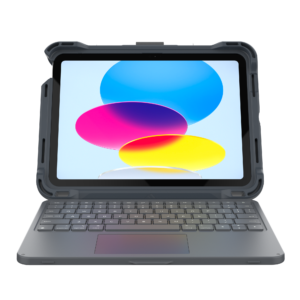

Meet the new and improved Brenthaven Rugged Keyboard for iPad 11-inch (A16) and iPad (10th Gen) devices. This iPad keyboard and case combination is the ultimate keyboard solution for students. Apple-tested and custom-molded to fit iPad devices, it enhances the student learning experience by promoting proper typing skills.
It also addresses the biggest concern with technology in classrooms: Durability. The always-on iPad keyboard offers pry-resistant keys, drop-test durability and water-resistant design.
Highlights
- Drop Protection: Brenthaven remains #1 in durability. This TechShell Rugged Certified keyboard features 6-foot drop protection, exceeding the MIL-STD-810H standard of 4 feet, and has passed Bureau Veritas’ rigorous drop test for best-in-class durability. It also offers shock-resistant Air Cell™ corners to deflect drops and non-slip feet to keep the keyboard in place.
- Permanently Attached to Case: Students can no longer remove the keyboard as it’s attached to the case for use at any time.
- Pry-Resistant Keys: Fabric keys trap odors and don’t last. We use true keyboard keys that are pry-resistant and elevated to promote proper typing skills.

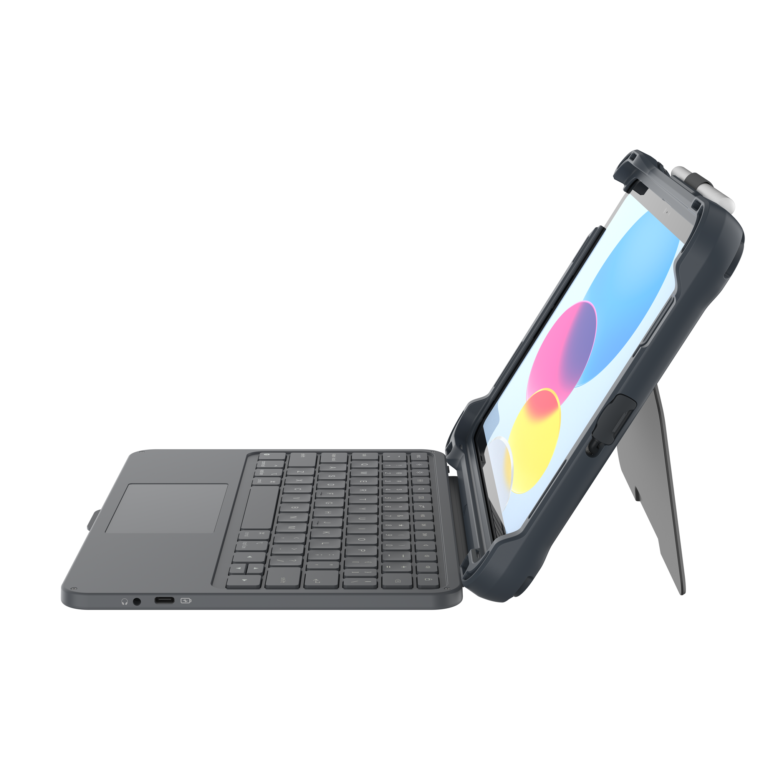

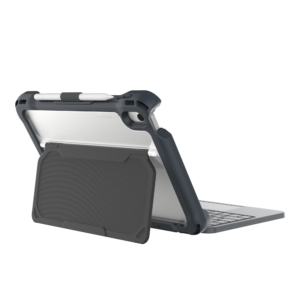

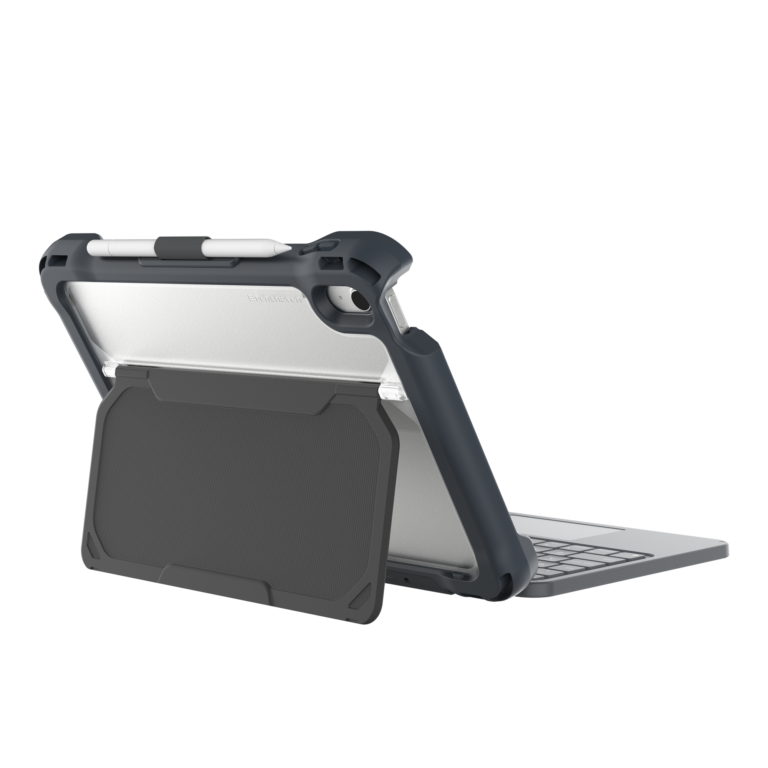

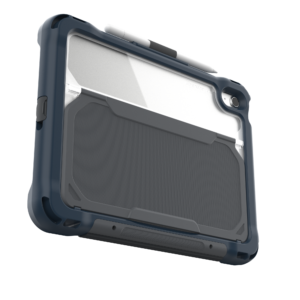

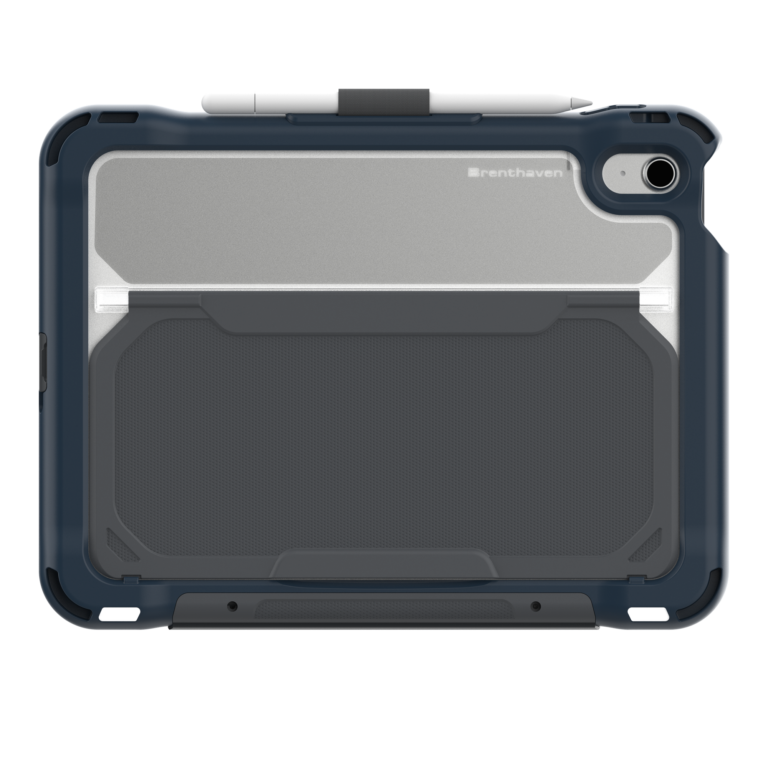

- Durable & Adjustable Kickstand: Featuring Brenthaven’s most durable kickstand, this case and keyboard combination offers 2 viewing angles to create the perfect setting for learning.

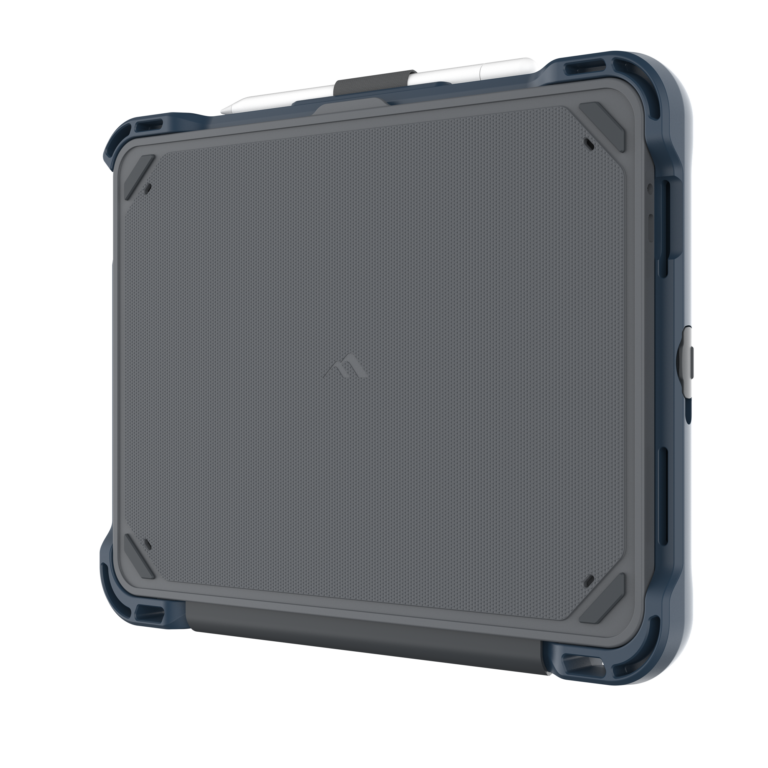

- Asset Tagging: Large, clear space for asset tagging and simple device management.

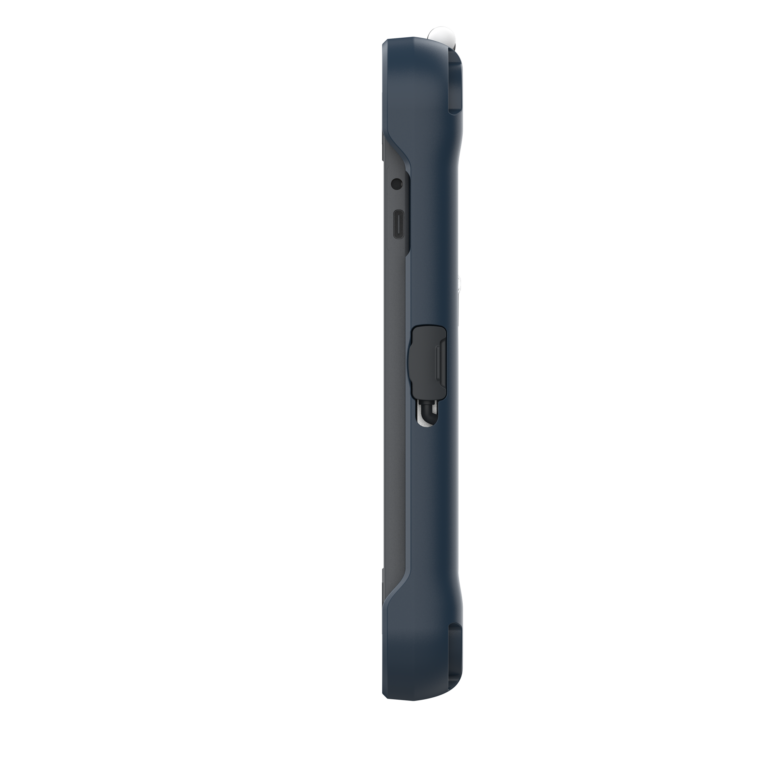

- USB-C Port: Charge your iPad while you’re using it and listening to headphones at the same time.
- Trackpad: Large trackpad enables easy navigation through school work with swipe, tap, pinch, and scroll functionalities.
- Lightweight: The Rugged Keyboard is the lightest weight iPad keyboard in its class.

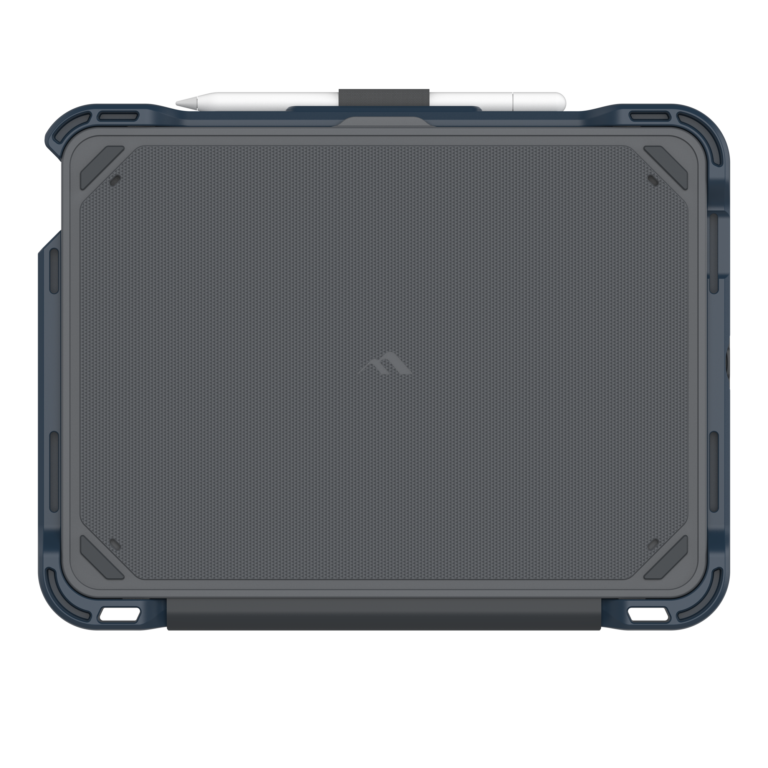

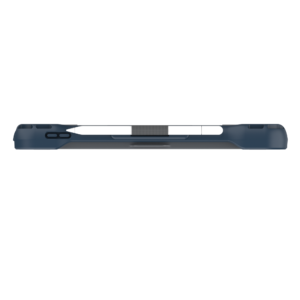

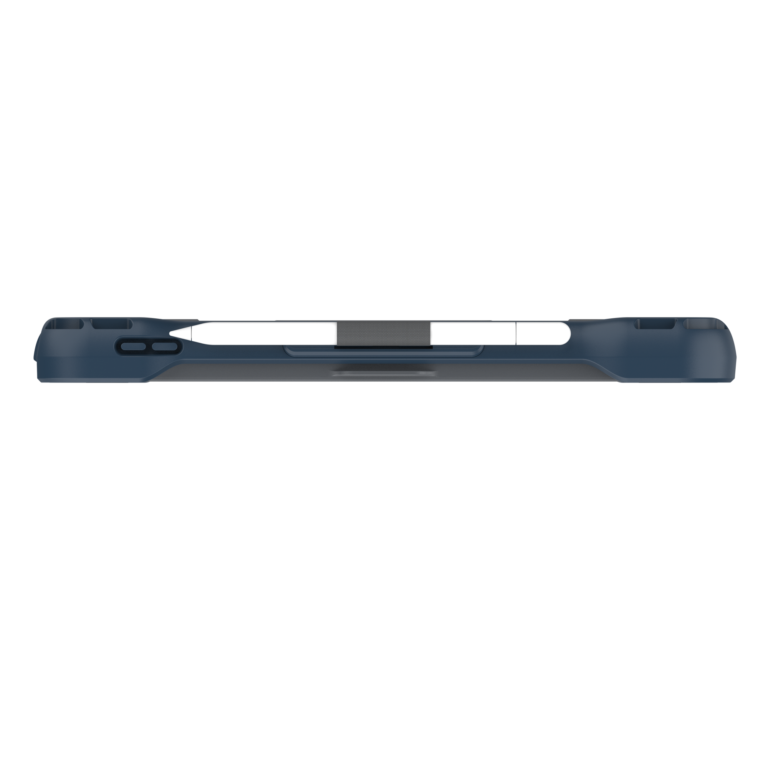

- All the Extras: Our designers thought of everything, including a full shortcut row for one-touch simplicity, stylus pen storage, 3.5mm audio port and optional shoulder strap for on-the-go students.
- No Impact on iPad Charging: This keyboard has no impact on charging speed while charging iPad devices, and devices will run up to 15 hours without additional charge.
Specifications & Instructions
Instructions
Specsheet
Dimensions
| Length | 10.75in. |
| Width | 8.45in. |
| Height | 1in. |
| Weight | 1.25lbs. |
Other Info
| Materials | TPU Rubber, PC Plastic, PU Fabric |

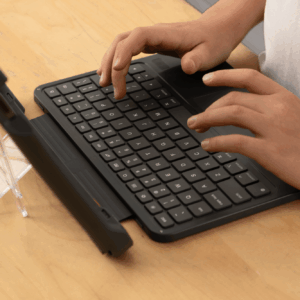

| Keyboard | English US non-backlit keyboard with trackpad, 16 key shortcut row, 3.5mm audio, and USB-C ports |
| Trackpad | Large trackpad with 22 iPadOS gestures |
| Connection | Keyboard is plugged directly into the iPad’s USB-C port for power and connectivity |
| USB-C Passthrough | Access to native iPad port for connection to MacOS. |
| 3.5mm Audio Port | For connection to 3.5mm headphones. |
| 1 USB Type-C Port | Data and charging port on keyboard |
| iPad Charging | Type-C Power Delivery (PD) 3.1 allows up to 9V/2A fast charging (up to 18W). |
| USB-C Data Transfer | USB 2.0 supports speeds up to 480 Mbps, facilitating data exchange for external devices such as USB-C headphones. Files, images, and videos can be uploaded to the iPad. |
| External Screen Mirroring | Unplug the cable that connects the keyboard to the iPad and connect USB-C cable directly to the native iPad USB-C port for display purposes. USB-C port on the keyboard does not support external screen mirroring (DisplayPort). |
Compatibility
iPad 11-inch (A16) and iPad (10th Gen)
iPad (10th Gen)
Frequently Asked Questions
QUESTIONS & ANSWERS
Does the stylus holder on the Rugged Keyboard support wireless charging for the Apple Pencil or other styluses?
The universal stylus holder is compatible with both the Apple Pencil and Logitech Crayon. The iPad 10th Gen does not support wireless charging for styluses, so this feature is not included in the case.
Is the keyboard waterproof?
The keyboard components are sealed off and have internal drainage channels to help evacuate liquid and thwart small
spills. However, the keyboard is not fully waterproof, and liquid damage will not be covered under warranty.
What shoulder strap is compatible with the case?
The Brenthaven Shoulder Strap (SKU: 1039)
TROUBLESHOOTING
If the Rugged Keyboard or USB-C/headphone jack is not typing or functioning, try these
solutions:
- Unplug and Reseat the Connection:
- Unplug the USB-C
connection to the iPad. - Ensure the cable tip is free of debris and fully inserted
into the iPad port.
- Unplug the USB-C
- Soft Reset the iPad:
- Press and hold the
Sleep/Wake and Volume up buttons simultaneously. - Wait until the iPad
reboots and the Apple logo appears on the screen. - Release the two buttons.
- Test the keyboard once
the iPad has fully booted up.
- Press and hold the
- Update iPadOS and Keyboard Firmware:
- Update to the newest
version of iPadOS and test the keyboard functionality. - If the issue persists,
try connecting the iPad to a MacBook and test again.
- Update to the newest
STORAGE AND TRANSPORTATION
When transporting or storing Rugged Keyboard units, stack them vertically to
minimize weight and pressure, reducing the risk of damage. If horizontal stacking is necessary, do not stack more
than 4 units on top of each other.
minimize weight and pressure, reducing the risk of damage. If horizontal stacking is necessary, do not stack more
than 4 units on top of each other.
CLEANING
Spray cleaning liquid onto a cloth and wipe the keyboard; do not spray directly
onto the case or trackpad. Microfiber cloths work effectively with just water, but non-toxic or chemical cleansers
without bleach can also be used. Ensure the case is completely dry before storing.
onto the case or trackpad. Microfiber cloths work effectively with just water, but non-toxic or chemical cleansers
without bleach can also be used. Ensure the case is completely dry before storing.
PREPARING iPAD
- iPads need to be unwrapped
and removed from packaging - iPads need to be updated to
latest iOS software - This may require being
connected to power. Please have charging cables available - If asset tags are used on
iPads, install tags in a location visible through the Rugged Keyboard window prior to installing iPad into
Brenthaven Rugged Keyboard for iPad 10th Gen
